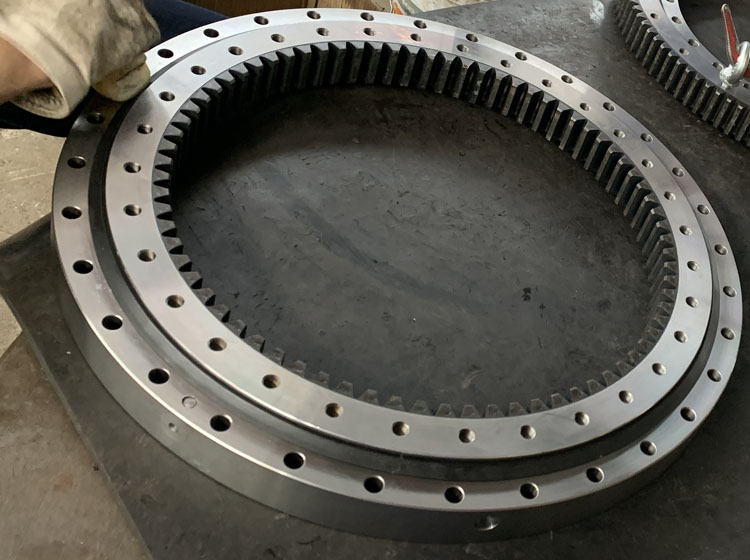

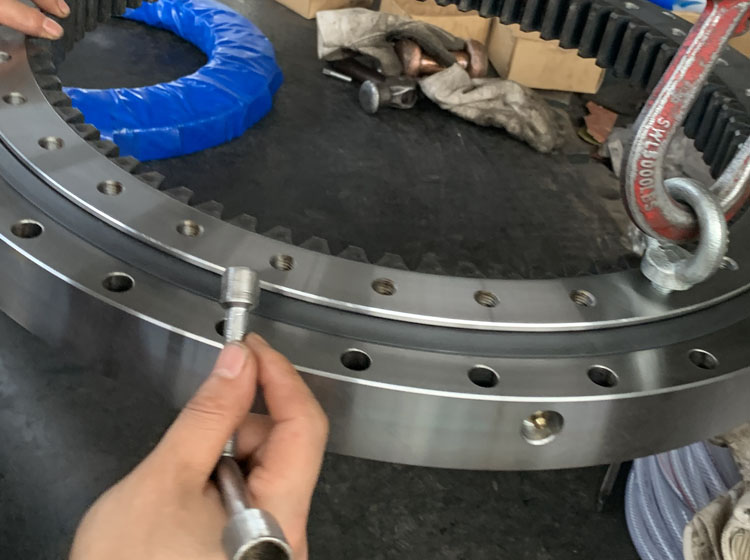

062.20.0544 internal gear slewing bearing
Inner Gear Slewing Bearing
This is skf model Medium size four-point contact ball slewing bearings with an internal gear rks.062.20.0544, internal tooth type, light series
Contact Us
Email
Download PDF

Product Description


New Designations :
062.20.0544.575.01.1403
Main demensions :
445.2 × 614.5 × 56
Bore Dia × Outside Dia × Width Dia (mm)
M :
42 kg
Weight
ID :
445.2 mm
Inside diameter(I.D.)
OD :
614.5 mm
Outside diameter(O.D.)
T(B) :
56 mm
Thickness(W.D.)
Category :
Four point contact ball slewing bearings (Internal gear type)










Detailed parameters and installation dimensions:

Specifications
Part Number062.20.0544.575.01.1403
Permissibe tangential forces,normal(X1)16
Permissibe tangential forces,maximum(X2)32
Geometry
Weight(KG)42
Racewat diameter(Dl)544
External diameter(Da)614.5
Internal diameter(Di)445.2
Overall height(H)56
Outside bole-hole circle diameter (La)590
Intside bole-hole circle diameter (Li)505
Attachment
Number of bolt holes per hole circel(n)32
Hole diameter(B)13.5
Bolt size(M)12
Number of grease nipples(n1)
Diameter(O)545.5
Diameter(U)541
Ring height(H1)45.5
Ring height(H2)45.5
Distance between bottom outer ring/inner ring(Hu)10.5
Distance at top Outer ring/inner ring(Ho)10.5
Gear Data
Bolt-hole circle diameter(d)456
Module(m)6
Number of teeth(z)76
Profile shift, sign per DIN 3960 October,1976(x.m)
Tip height modification(k.m)-0.6
Tooth width(b)45.5
Thread depth (t)20
Diameter of tooth neck hight at root(Zu)
Tooth neck height(Hu)
Bearing play values(axial)
Bearing play values(radial)
