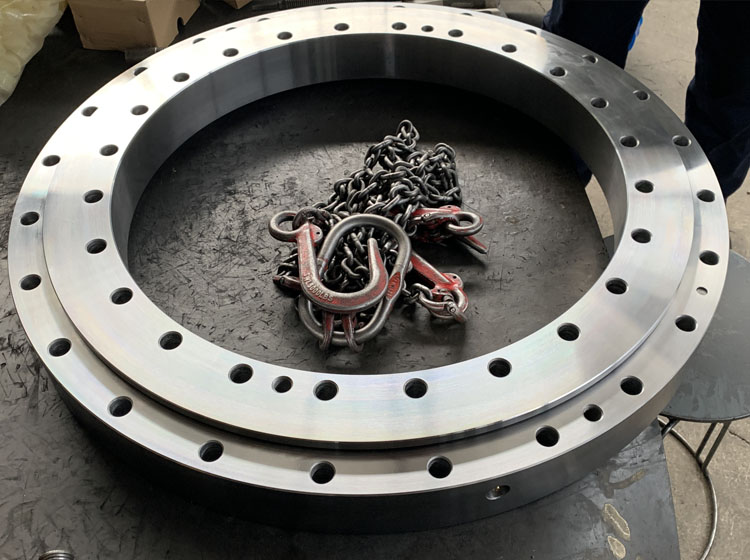

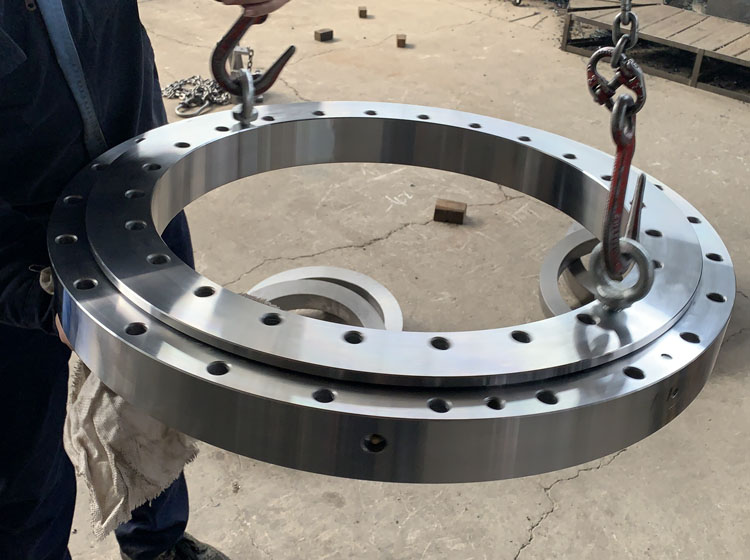

Name: 010.30.630 High temperature resistant gas pipeline slewing ring bearing
SKU: -1



PRODUCTS



010.30.630 High temperature resistant gas pipeline slewing ring bearing

Without Gear Slewing Bearing

Designed according to requirements, using labyrinth seals, high temperature 600-degree slewing bearings

Product Description

New Designations :

010.30.630H

Main demensions :

528 × 732 × 80

Bore Dia × Outside Dia × Width Dia (mm)

M :

105 kg

Weight

ID :

528 mm

Inside diameter(I.D.)

OD :

732 mm

Outside diameter(O.D.)

T(B) :

80 mm

Thickness(W.D.)

Category :

Four point contact ball slewing bearings (No gear type)

D1: 696 mm, d1: 564 mm, d2: 628.5 mm, H: 70 mm, h: 10 mm, Dwp: 630 mm, n1: 4 mm, n2: 24 mm, n3: 24 mm, ф1: ZG1/4 mm, ф2: 18 mm, ф3: 18 mm

Four point contact ball slewing bearings (No gear type) 010.30.630.12,

Bearing mass：105kg

size：528*732*80 mm),

d Bore: diameter of the inner ring 528mm

D Outside: diameter of the outer cylindrical surface of the outer ring 732mm

B Width: nominal width of the bearing 80mm
