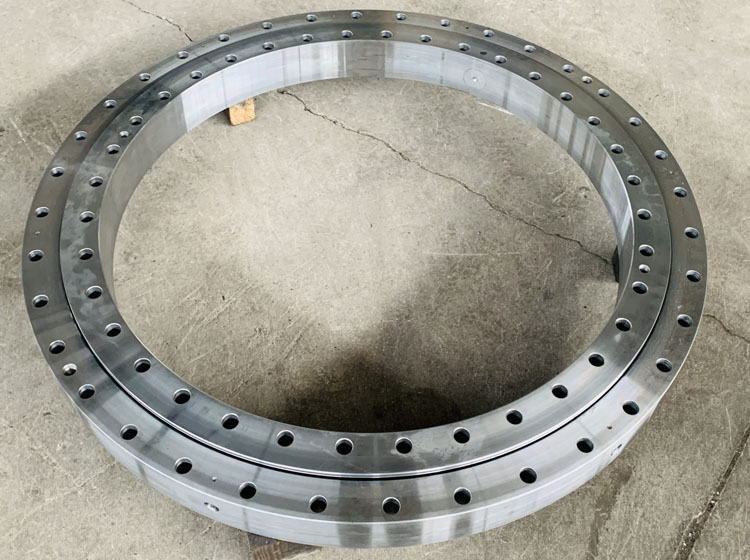

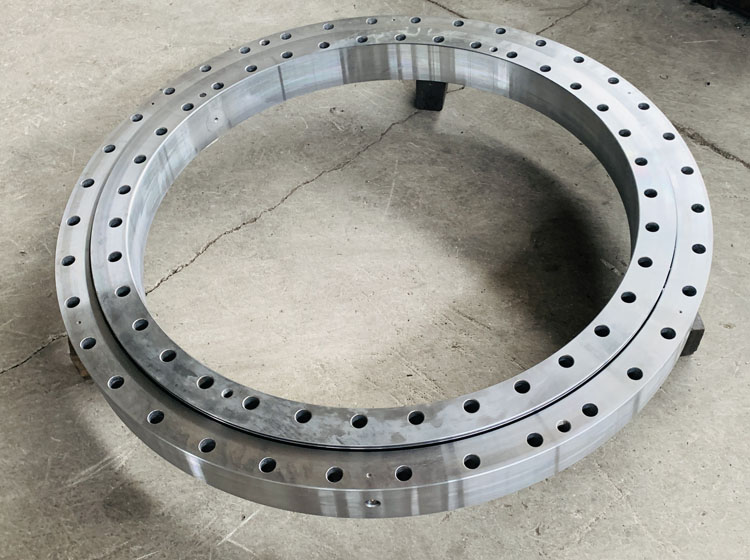

010.40.1000 Tothless Ungeared Single Row Slewing Ring Bearing without gear
Without Gear Slewing Bearing
It is a toothless heavy-duty slewing bearing structure, which is a conventional product. The track uses 40mm steel balls with a large bearing capacity. raceway quenching hardness 55-62HRC
Contact Us
Email
Download PDF

Product Description


New Designations :
010.40.1000
Main demensions :
878 × 1122 × 100
Bore Dia × Outside Dia × Width Dia (mm)
M :
270 kg
Weight
ID :
878 mm
Inside diameter(I.D.)
OD :
1122 mm
Outside diameter(O.D.)
T(B) :
100 mm
Thickness(W.D.)
Category :
Four point contact ball slewing bearings (No gear type)










Detailed parameters and installation dimensions:

D1: 1078 mm, D2: 922 mm, n: 36, φ: 22 mm, D3: 998.5 mm, d1: 1001.5 mm, H1: 90 mm, h: 10 mm, n3: 6, φ3: M10×1 mm, Coa: 3940 kN

Four point contact ball slewing bearings (No gear type) 010.40.1000,  270 kg Bearing mass,  (878*1122*100 mm),  878 mm d (Bore: diameter of the inner ring),  1122 mm D (Outside: diameter of the outer cylindrical surface of the outer ring),  100 mm B (Width: nominal width of the bearing),
